The Viator® USB HART Interface provides a flexible PC communication link to HART networks. It is used to commission, service, calibrate, and acquire data from any HART field device or transmitter. The interface is compact and rugged for field use.

• Supply
• Input current: 30 mA at 5 V
• Power supply: Powered by USB port , No external power required
• Interface
• Interface type: USB port
• Output
• Signal: 0.5 ± 0.1 Vpp trapezoidal wave at 1200/2200 Hz, 24 VDC at 40 mA to device
• Galvanic isolation
• Output/interface: 1500 V DC
• Directive conformity
• Electromagnetic compatibility - Directive 2014/30/EU: EN 61326-1:2013
• RoHS - Directive 2011/65/EU (RoHS): EN 50581:2012
• Ambient conditions
• Operating temperature: -20 ... 50 °C (-4 ... 122 °F)
• Storage temperature: -20 ... 60 °C (-4 ... 140 °F)
• Relative humidity: 0 ... 95 % non-condensing
• Mechanical specifications
• Degree of protection: IP20

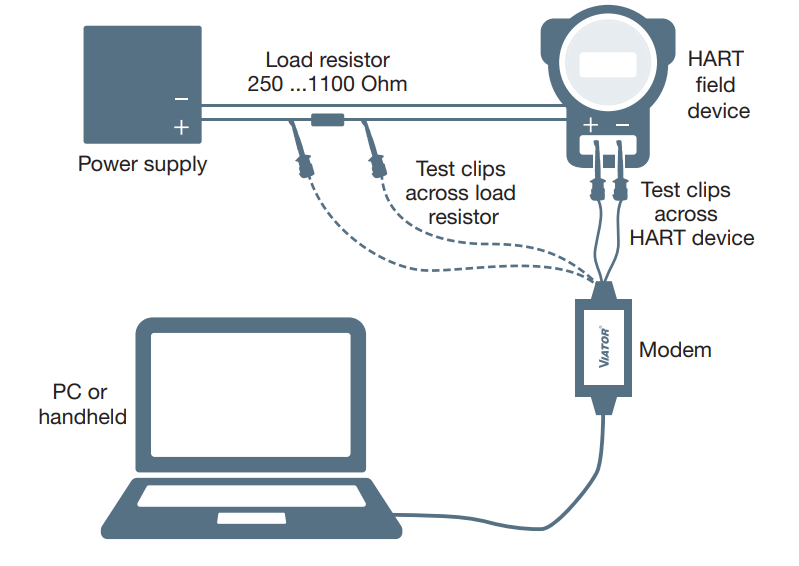

• Connection: USB (type A) Connector , red and black test clips
• Material: Polycarbonate
• Dimensions: 75 mm x 33 mm x 15 mm
• Cable length: 1.8 m 2-strand wire terminating in 2 test clips , 15.2 cm cable terminating in 1 USB type A connector
• General information
• Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable.

• Datasheet: Download
• Manual: Download
