teknikol COMMANDER

teknikol COMMANDER

Version: 2.2.1
*Purchase is for android app only (samsung device not included)

Price: $200.00
teknikol COMMANDER is an Android Application used to communicate and configure HART® Field Devices. Issue common HART commands using your smartphone or tablet.
- NEW! DEVICE CALIBRATION
- -Re-range Primary Variable
- -Analog Output (Loop Current) Trim
- -Loop Test
- -Primary Variable Sensor Zero
Portable – once downloaded, the COMMANDER app is always with you on your Android mobile device.

Reliable - once connected to the MACTek Bluetooth Modem, Bluetooth technology provides reliable access to PV's and other key device information

Cost-effective – just include a compact Bluetooth modem in your tool kit and eliminate unnecessary trips back to the office or instrument shop to get a handheld or PC-based configuration tool.

Simple – easy to use, the COMMANDER communicates with the Bluetooth modem that is attached anywhere on the 4-20mA loop of the target device. The device information is quickly displayed for monitoring, trouble shooting or reconfiguring a device parameter.

Universal – works with all registered HART® devices.

Free Version - Available on Google Play
- Device Calibration
- Free in-app updates
- Issue any command with CONSOLE feature
- Full NAMUR diagnostics
- BlueTooth® modem discovery and connectivity
- Search field devices via polling address, range, and short tag
- Device Status and Expanded Device Status
- Read Primary Variable
- Read/Write Primary Variable Units
- Read SV, TV, QV Variables
- Read/Write Polling Address
- Read Loop Current
- Read Percent Range
- Read/Write Upper Range
- Read/Write Lower Range
- Read/Write Lower Damping
- Read Transfer Function
- Read Upper Transducer Limit
- Read Lower Transducer Limit
- Read Minimum Span
- Read Transducer Serial Number
- Read/Write Message
- Read/Write Short Tag
- Read/Write Long Tag
- Read/Write Descriptor
- Read/Write Final Assembly Number
- Read/Write Date
- Read Write Protect
- Read Private Label Distributor
- Read Manufacturer ID
- Read Device Type
- Read Device ID
- Read Major Revision Number
- Read Device Revision Number
- Read Software Revision Number
- Read Hardware Revision Number
- Read Response Codes
- Read Comm Errors
- Android Device Requirements
- Bluetooth Serial Port Profile (SPP)
- Android 3.1+
- Android phones and tablets
- Compatible HART® BlueTooth Modems
- MACTek VIATOR® BT (Bluetooth®) Modem

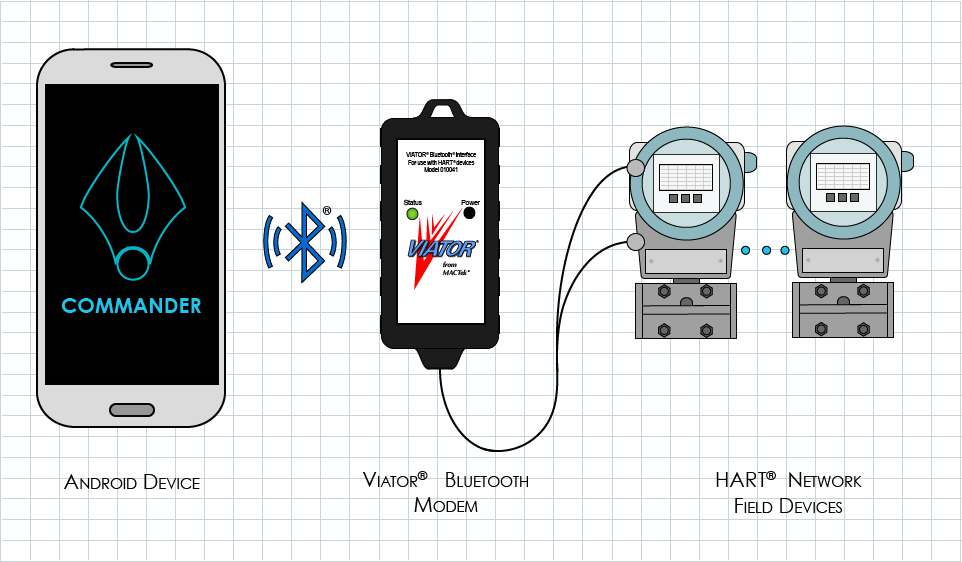

Connectivity Diagram

COMMANDER Demo Video
