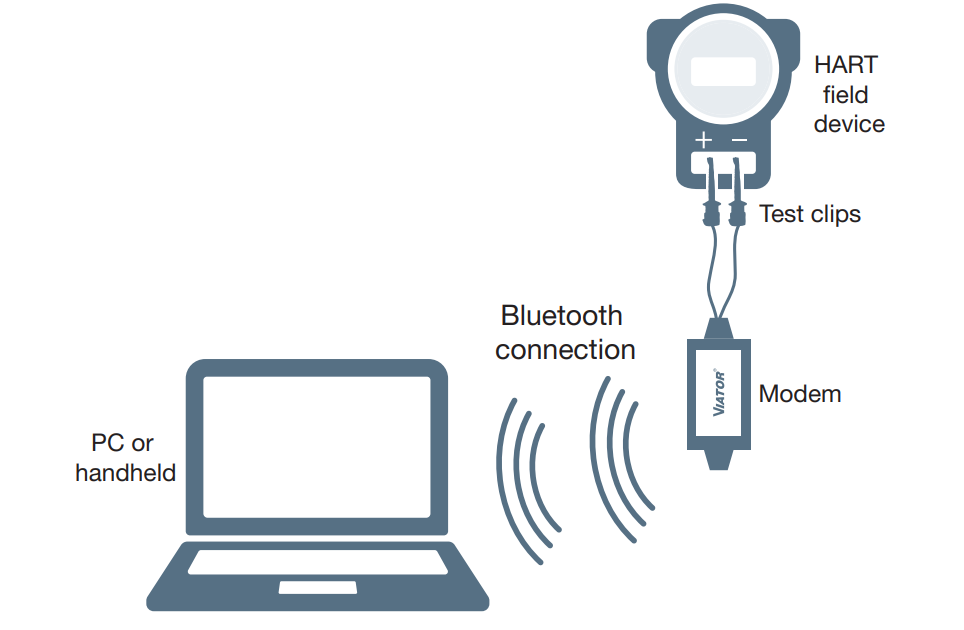

The Viator® Bluetooth® Interface is a point-to-point HART modem for temporary connection to HART field devices. The modem is operated by replaceable AAA batteries and can operate for approximately 20 hours. It attaches to a HART field device with 18-inch leads and test clips. The PC host uses an internal Bluetooth interface or a USB-to-Bluetooth converter to communicate with the modem.

• Electrical specifications
• Battery type: 3 x AAA-size batteries, 1.5 V DC, alkaline cells, type LR03
• Operating duration: approx. 20 h (continuous operation)
• Interface
• Physical: Bluetooth v2.0, Class 1, EDR
• Transmitter frequency: 2402 ... 2480 MHz (Bluetooth)
• Transmitter radiated power: 18 dBm
• Detection range: 100 m in air
• Antenna: integrated omnidirectional
• Output
• Signal: HART-compliant trapezoidal wave at 1200/2200 Hz
• Directive conformity
• Output/interface: 500 V DC
• Directive conformity
• Radio and telecommunication terminal equipment - Directive 2014/53/EU: EN 300 328 V2.1.1 , EN 301 489-17 V3.1.1
• RoHS - Directive 2011/65/EU (RoHS): EN 50581:2012
• Ambient conditions
• Operating temperature: -20 ... 50 °C (-4 ... 122 °F)
• Storage temperature: -20 ... 60 °C (-4 ... 140 °F)
• Relative humidity: 0 ... 95 % non-condensing
• Mechanical specifications
• Degree of protection: IP20
• Connection: HART I/O Interface cable , 20 AWG fine-strand , termination test clips
• Material: Polycarbonate
• Dimensions: 88 mm x 42 mm x 19 mm
• Cable length: 0.5 m
• General information
• Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable.

• Datasheet: Download
• Manual: Download
• Statement of compliance - EU-Declaration of Conformity: Download
• Certificate - Bluetooth SIG Radio Approval: LINK
